Spider
Smart connected access for almost any gate, door or barrier.
A family of compact 4G smart controllers and wireless receivers designed to add connected access to existing automation. From Spider-50 to dual-relay and Wiegand 26 models, Spider gives installers the flexibility to choose the right configuration for every application.
One family. 7 models.
From entry-level to dual-relay and Wiegand integration, every Spider variant has its own color — making identification quick and easy for installers and support teams.

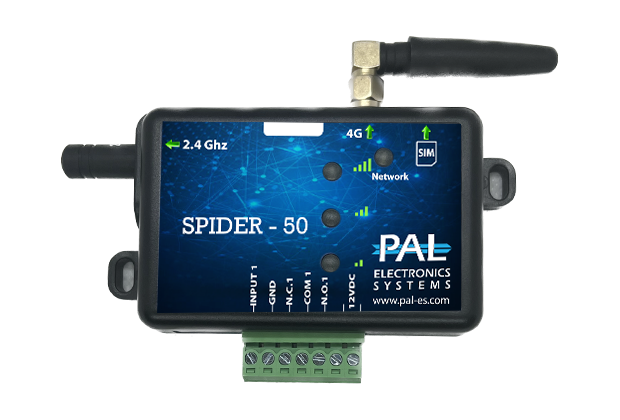

Spider-50
1 output · 1 input · 50 app users
- 4G, Wi-Fi & Bluetooth
- 1 N.O./N.C. output, 1 input
- 50 PalGate App users
- 12–24 VDC · 50×80 mm

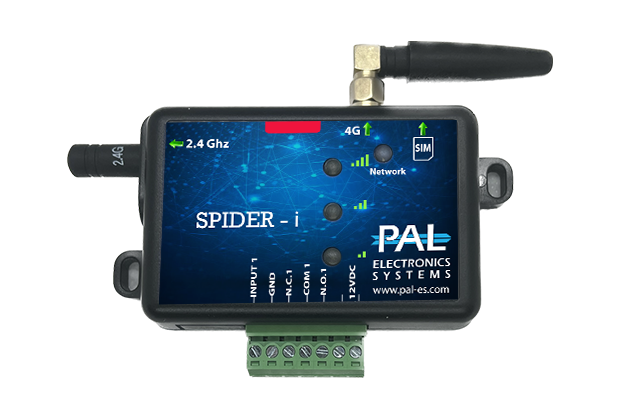

Spider-i
1 output · 1 input · unlimited users
- 4G, Wi-Fi & Bluetooth
- 1 N.O./N.C. output, 1 input
- Unlimited PalGate App users
- 12–24 VDC · 50×80 mm

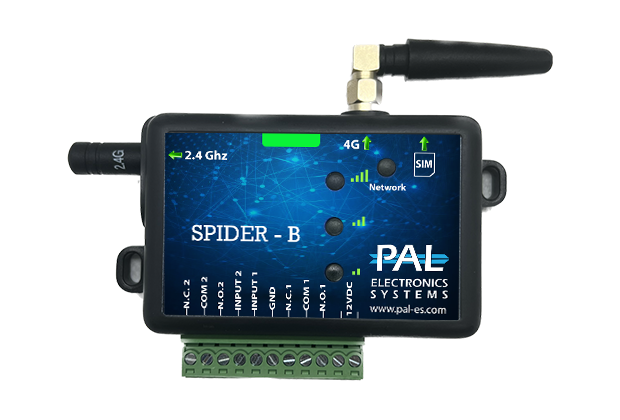

Spider-B
2 outputs · 2 inputs · unlimited users
- 4G, Wi-Fi & Bluetooth
- 2 N.O./N.C. outputs, 2 inputs
- Unlimited PalGate App users
- 12–24 VDC · 50×80 mm

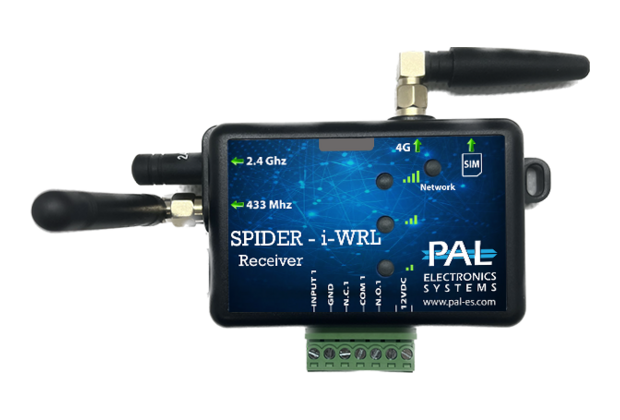

Spider i-WRL
Wireless receiver · 3 app users
- 4G, Wi-Fi & Bluetooth
- 433 MHz receiver · up to 4,000 remotes
- 1 output, 1 input
- 3 PalGate App users

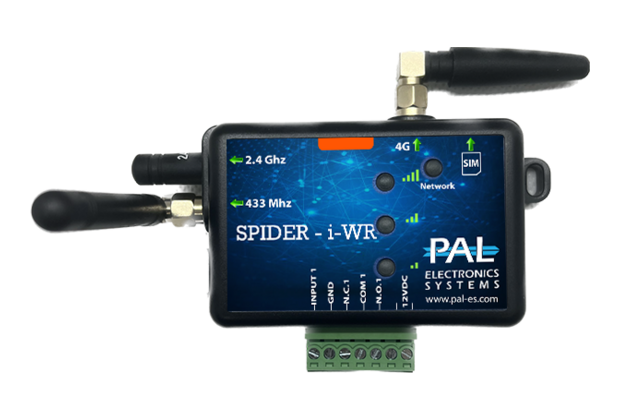

Spider i-WR
Wireless receiver · unlimited users
- 4G, Wi-Fi & Bluetooth
- 433 MHz receiver · up to 4,000 remotes
- 1 output, 1 input
- Unlimited PalGate App users

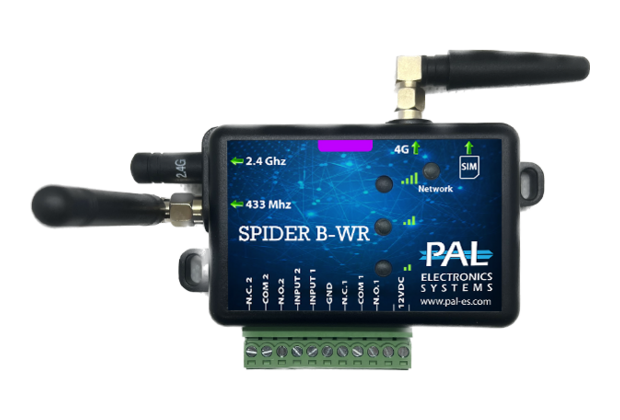

Spider B-WR
Wireless receiver · 2 outputs
- 4G, Wi-Fi & Bluetooth
- 433 MHz receiver · up to 4,000 remotes
- 2 outputs, 2 inputs
- Unlimited PalGate App users

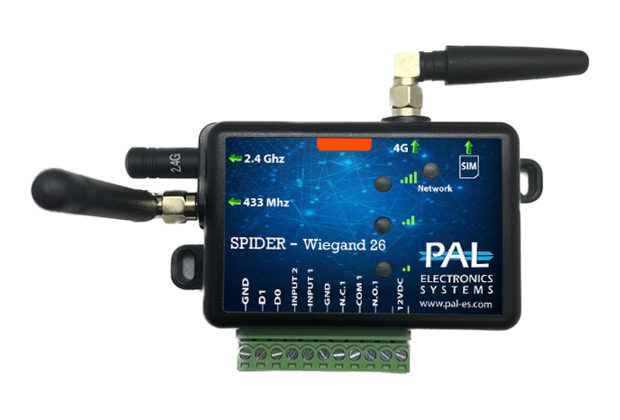

Spider Wiegand 26
Wiegand 26 reader integration
- 4G, Wi-Fi & Bluetooth
- 433 MHz receiver · up to 4,000 remotes
- Wiegand 26 input for external readers
- Programmable relay · unlimited users
Why Spider
Cloud-managed
Manage users, permissions and access remotely through the PalGate App and Web Portal — from anywhere.
Fast to install
Compact, plug-and-play hardware and simple setup get your access point connected in minutes.
Access even when the internet is down
Within Bluetooth range, authorized users can connect directly to Spider and open the gate even when internet connectivity is unavailable.
Spider documentation
Installation and user guides in PDF. Choose the edition for your region.
Other products
VPS
7-inch anti-vandal touchscreen video intercom for gates and buildings. See visitors, speak with them and open the entrance from the PalGate App, with access by app, NFC, RFID tag or keypad.
LPR System
License plate recognition for parking and gated access. Identify authorized vehicles, automate entry and keep a complete record of plate reads and images — with real-time management and reporting.
WiBee
Compact single-input, single-output controller with Wi-Fi and Bluetooth connectivity. Supports up to 4,000 smart 433 MHz remote controls, with quick setup and management through the PalGate App — no SIM required.
Long-Range RFID
Long-range RFID reader for automatic vehicle access. Designed for fast, convenient identification at gates, barriers and high-traffic entrances.
Open your world with Spider.
Talk to our team about the right setup for your site.
